| Measuring range | 3-600m |
| Magnification | (6.0±5%)X |
| Field of view | 6°±10% |
| Scan Distance Measure | Yes |
| Distance Measure Accuracy | ±(1.0m+D*0.2%) |
| Speed Measure Accuracy | ±5 KM/H |
| Diopter Adjustable Range | ±6° |
| Objective caliber | 23.7mm |
| Eyepiece caliber | 15mm |
| Exit pupil caliber | 3.7mm |
| Lens Coatings | Fully Multi-Coated(FMC) |
| Battery | Li-ion 3.7V 750mAH |
| Battery Life | Charge-discharge 800 times |
| Battery working life | Single Measuring 30000 times after one time full charging |
| Water Resistant | IP54 |
| Dimensions | 104 * 76.5 * 41 mm |
| Net Weight | 197g |
| Laser wave length | 905nm |
Packing List:
| Item | Q’TY |
| Meter | 1pc |
| Pouch | 1pc |
| Hand Strap | 1pc |
| USB cable | 1pc |
| User’s manual | 1pc |
| Gift box | 1pc |

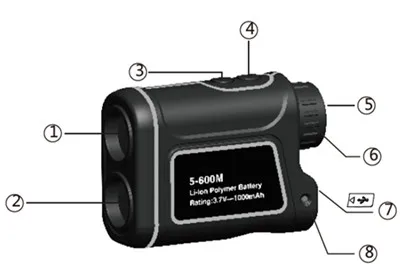

Layout & LCD display:
 |
1. Laser emission
2. Laser receiving lens
3. Mode/Unit switching key
4. Power & Start button
5. Observation eyepiece
6. Rotation-type focusing
7. USB Insert
8. Charging Light
|
 |

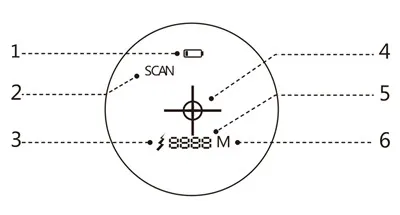

1. “
 ” – Low power 2. “
 ” – Scanning mode 3. “
 “-Laser shooting 4. “
 ” – Target 5. “
 ” – Straight line distance result |
Operating Instructions:
A) Start
The laser range and Speed finder have two buttons: the “Start” button (
) and the “Mode” button. Press “” for about 1 second and the device will start
B) Diopter adjustment:
Adjust the diopter to get a clear image in the eyepiece display. Turn the rotation of the eyepiece left or right until the display is in focus.
C) Mode change
Shortly press the “mode” button, and the range finder will change between 2 modes.
Mode 1: Range mode: Measure straight line distance
Mode 2: Speed mode (Show ” speed in LCD”).Show in the figure below:
D) Scanning
Hold down the key does not release it, then start the scan ranging the top left of the screen displays the scan character “SCAN” with the change of the target, the straight-line distance data to constantly refresh the display, release the key , stop ranging.
E) Unit change
The laser rangefinder will automatically power off in 20 seconds without operation.
F) Automatic Power-off
Long press the “MODE” button, and Units of distance ” M/Y” can be converted.
G) The points for attention
Battery life: Continuous operation of about 30000 (room temperature), goal focus, measurement, and automatic power-down is included in the single duty cycle. This number may vary depending on the other factors of the temperature the target shape, and color.
Important Notes:
The multifunctional range finder does not emitted a visible It uses a, and from the selected target reflection, back to the optical receiver.
non-destructive vision infrared pulse laser By measuring each pulse from the target and back, the laser rangefinder then uses its advanced diagnostic circuit to instantly calculate the measured distance. The maximum measuring range of the device depends on target reflectivity, color, surface finish, size, and actual shape.
