Meet the SNDWAY SW-TG50, a compact and efficient Laser Distance Meter with a 50m range. This diastimeter combines advanced technology for precise measurements, making it ideal for DIY projects, construction work, and outdoor activities. Say goodbye to traditional tape measures and welcome the convenience of laser accuracy. Durable, user-friendly, and equipped with a clear display, the SW-TG50 is your go-to tool for hassle-free measurements in any environment. Upgrade your toolkit with this reliable rangefinder for efficient and precise distance calculations.
SNDWAY New arrive laser distance meter has the following features:
1, Measurement unit options:m/ft/in
2, 30 units of data storage
3, High accuracy ±2mm and wide measuring: 50M (50M / 70M / 100M / 120M for optional)
4, Set up front/rear benchmark.
5, Large 2.0-inch LCD with backlight.
6, Double Air Bubble
| Specifications | ||
| Brand | SNDWAY | |
| Model Name | SW-TG50 | |
| Measure | Distance, Area, Volume, pythagorean | |
| Measuring Range | 0.05-50m | |
| Accuracy | ±2mm | |
| Unit option | m/in/ft | |
| Display | Larger 2.0 inch LCD display | |
| Bubble | Dobule air bubble | |
| Pythagorean measurement | Full mode | |
| Single / Continuous measurement | Yes | |
| Distance Area Volume measurement | Yes | |
| Add and subtract measuremen | Yes | |
| Min/Max value | Yes | |
| Max storage | 30 units | |
| Automatic backlight | Yes | |
| Buttons/Keys sound | Yes | |
| Laser level | Laser II 635nm,<1mW | |
| Laser off | 20s | |
| Automatic shutdown | 150s | |
| Storage temperature/ humidity | 20℃-60℃ / 20%-80%RH | |
| Working temperature | 0℃-40℃ | |
| Set up front / rear benchmark | Yes | |
| Data Hold / Data clear function | Yes | |
| IP54 protection (dust & splash proof): | Yes | |
| Product Weight / Size | 91g / 112*50*25mm | |
| Package Weight/ Size | 200g / 160 x 85 x 50mm | |
| Packing Contents | 1*50M Laser distance meter1*Portable pouch
1*Hanging rope 1*User manual 1*Retail box |
|

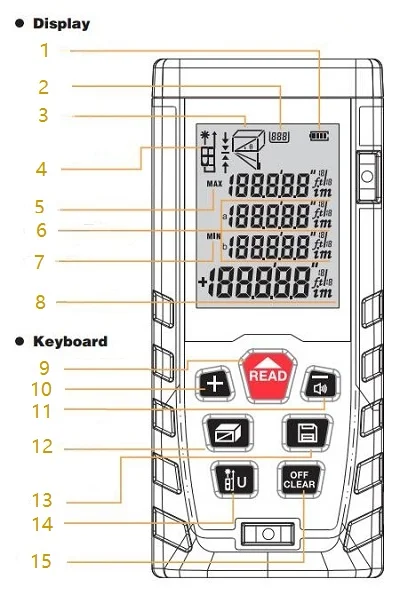

| Diagram Description | ||
 |
1.Power supply
2.Record 3.Length,Area,Volume and Pythagorean 4.Laser on 5.Maximum 6.Auxiliary display 7.Minimum 8.Major display 9.Turn on/Measuring 10.Addition 11.Subtraction/Sound 12.Area/Volume/Pythagorean 13.Save 14.Reference point/Unit switch 15.Turn off/Remove |
|
| You may get some warning information as below: | ||
| Information | Cause | Solution |
| Err | Out of distance measurement range | Use the device within the range |
| Err 1 | Signal is too weak | Chose the surface with stronger reflectance.Use the reflecting plate |
| Err 2 | Signal is too strong | Chose the surface with weaker reflectance.Use the reflecting plate |
| Err 3 | Low battery voltage | Change the power supply |
| Err 4 | The working temperature is out of working range | Use the device in the specified |
| Err 5 | Pythagoras measuring error | Re-measure and ensure that Hypotenuse is bigger than Cathetus |
